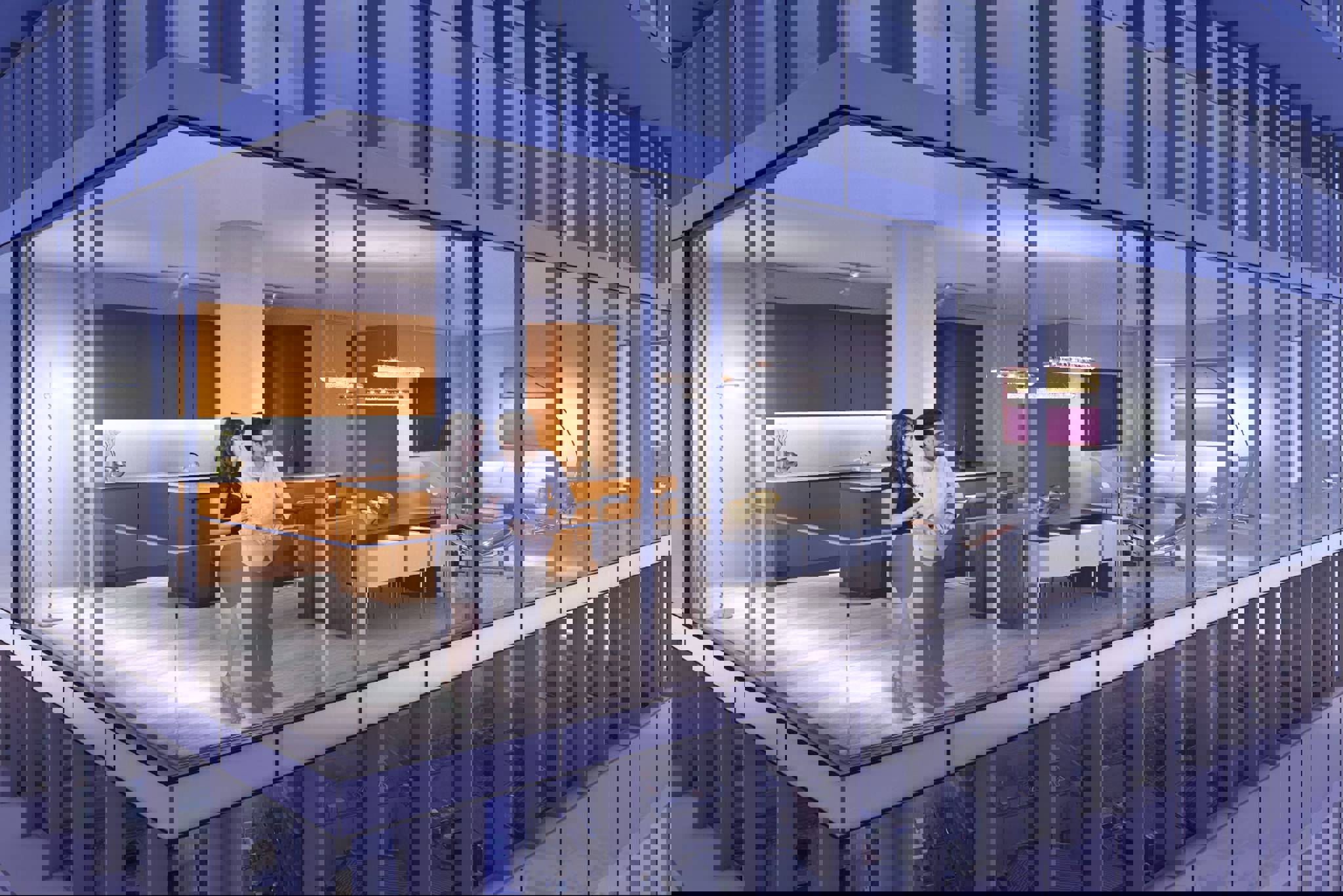

It has 117 mm carrier lower case profile to make it safer, it has with sill or without sill options. In the case and side connections, aluminum profiles are assembled by screwing instead of plastic injection. The carrying channel of the lower rail profile maintain the system balance. 4+9+4 glass combination provides heat insulation. Thanks to its custom carrier and double bearing accessories, Duo series sliding system becomes a more safer and ergonomic glass balcony.
* Espagnolette system and handle provides safe locking.
| Feature | Detail |
|---|---|
| Type | Sliding System |
| Materials | Aluminium - Glass |
| Glass Thickness | 17 mm Double Pane Glasses |
| Profile Colors | Anodized Matt – Anodized Bronze - Anthracite - Ral Colors |
| Accessories Colour | Black |
| Maximum Sash Width | 1200 mm (Optimum weight must be calculated.) |
| Maximum Sash Height | 2600 mm (Optimum weight must be calculated.) |
| Gasket | Bristle Wick and EPDM PVC Gasket |
| Plastic Parts | Custom Polyamide (PA66) made |
