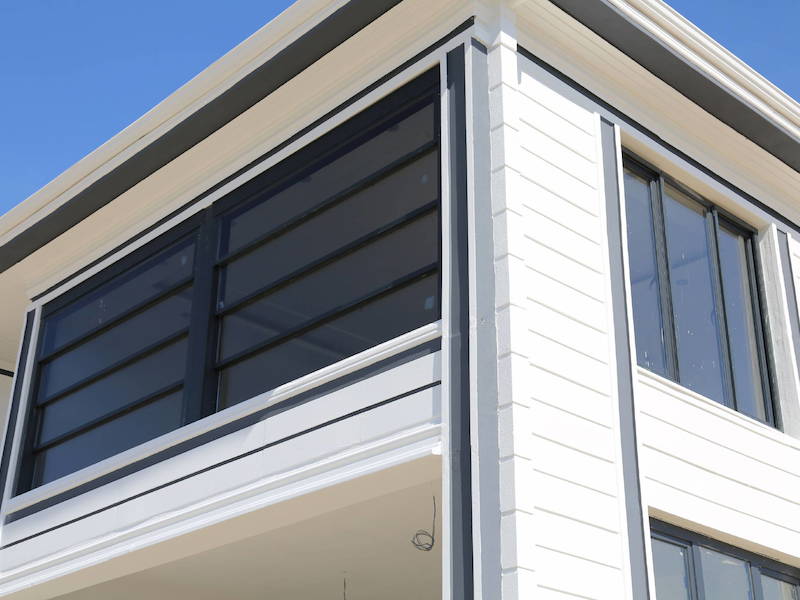

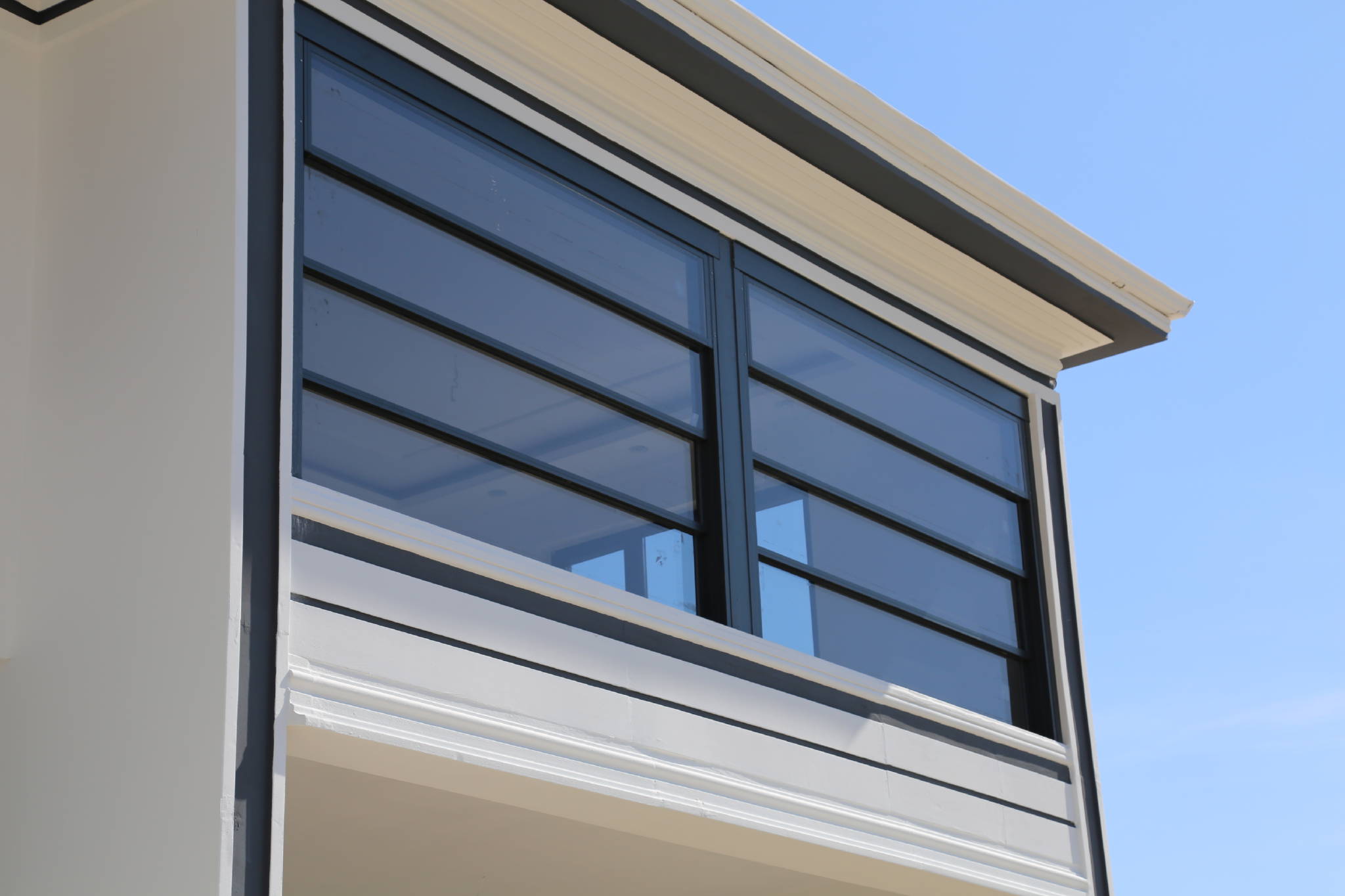

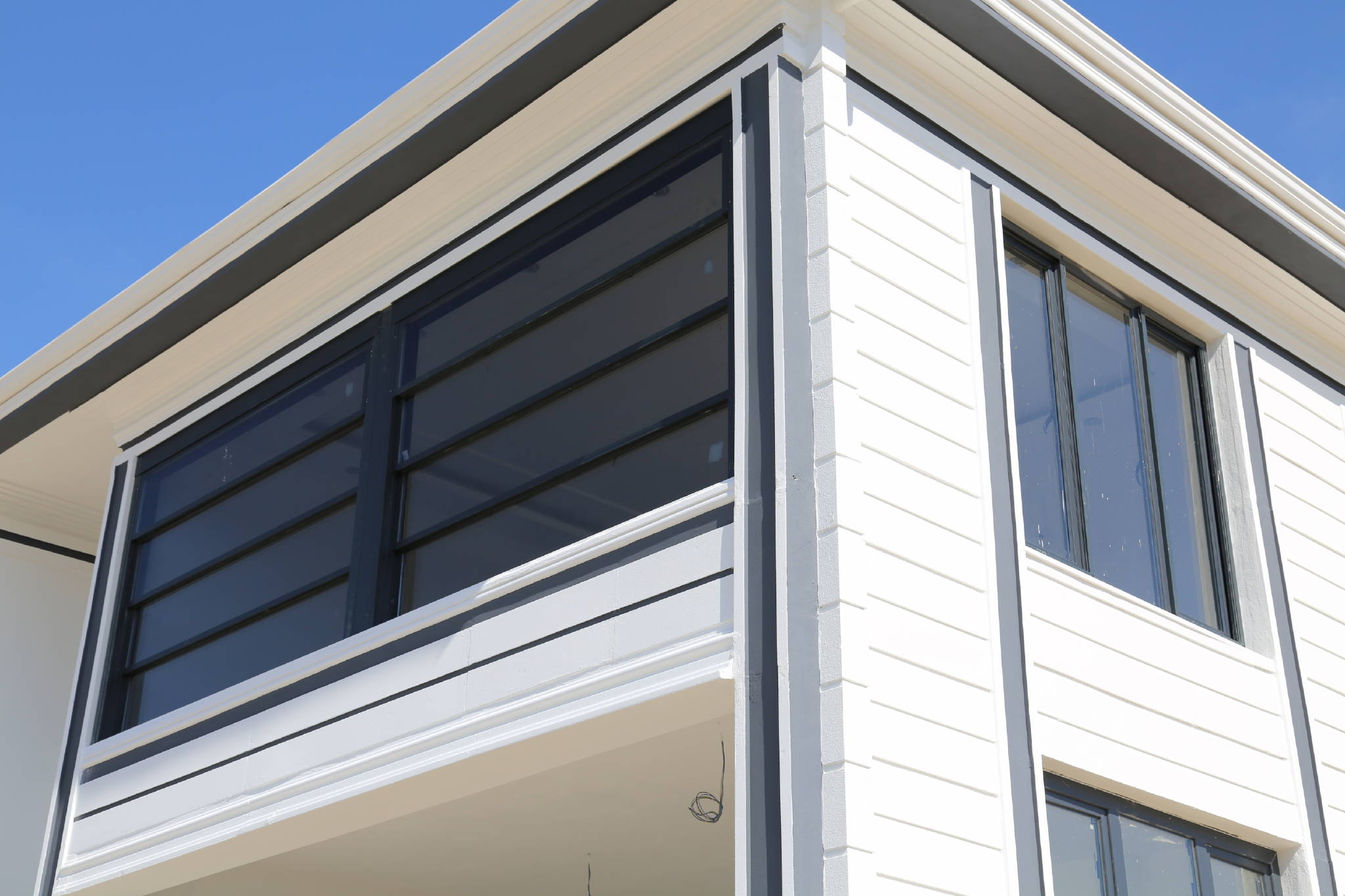

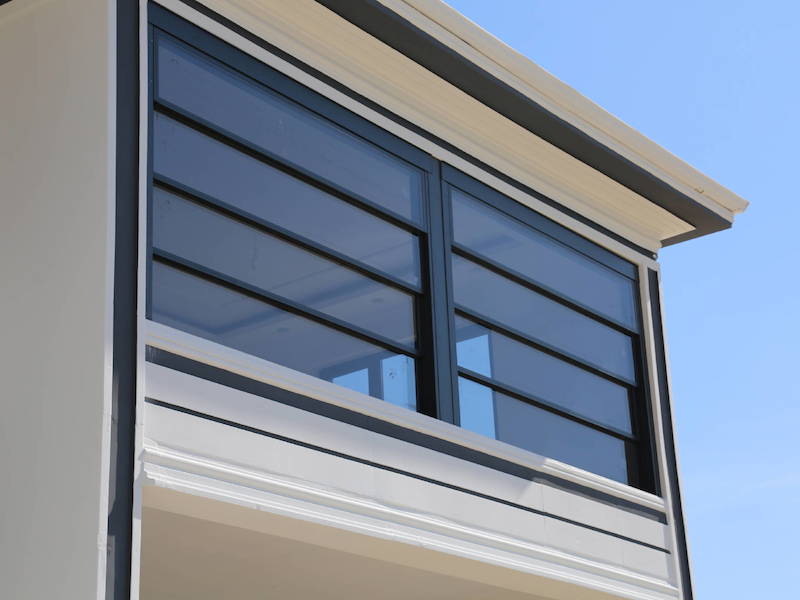

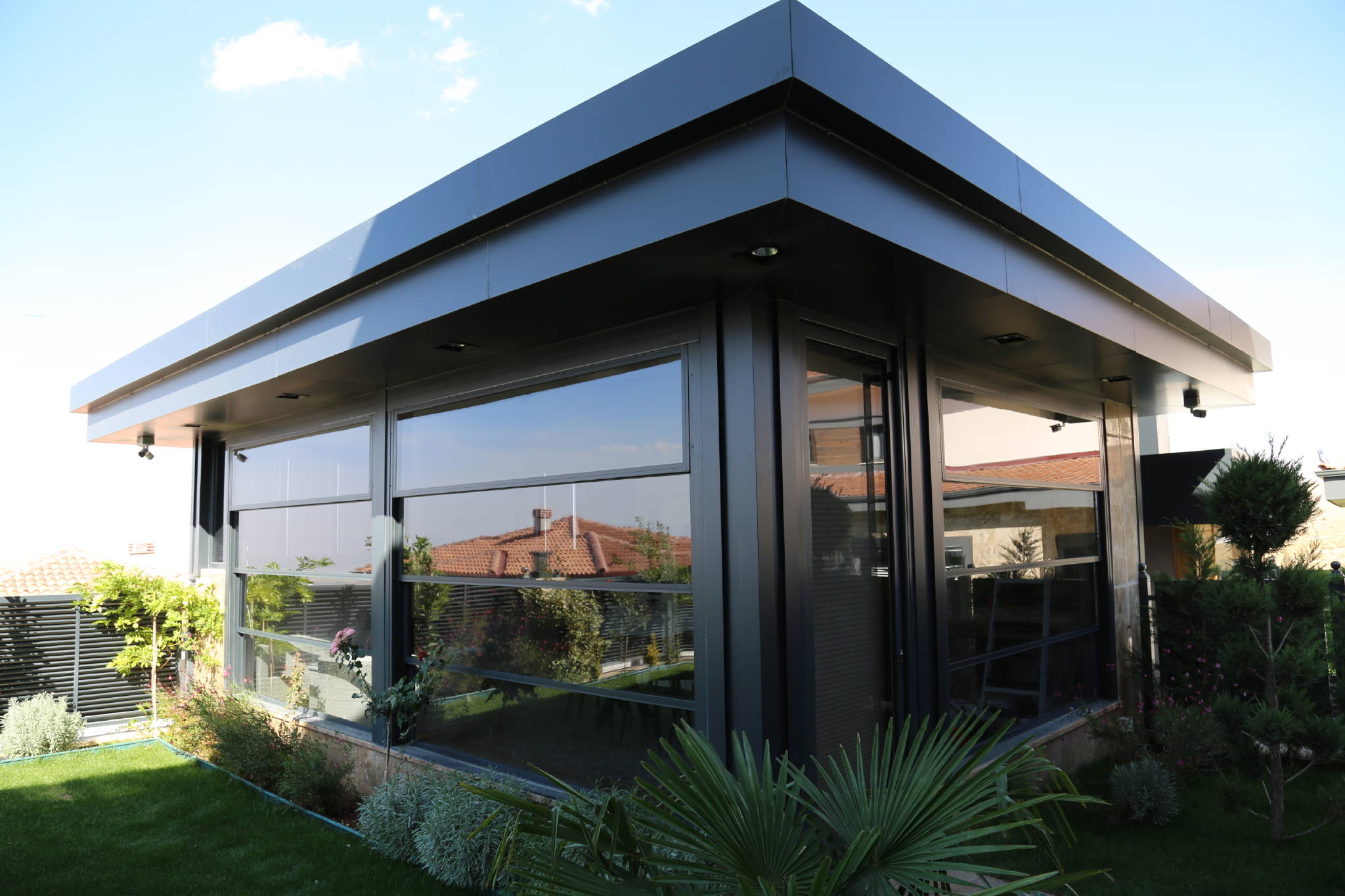

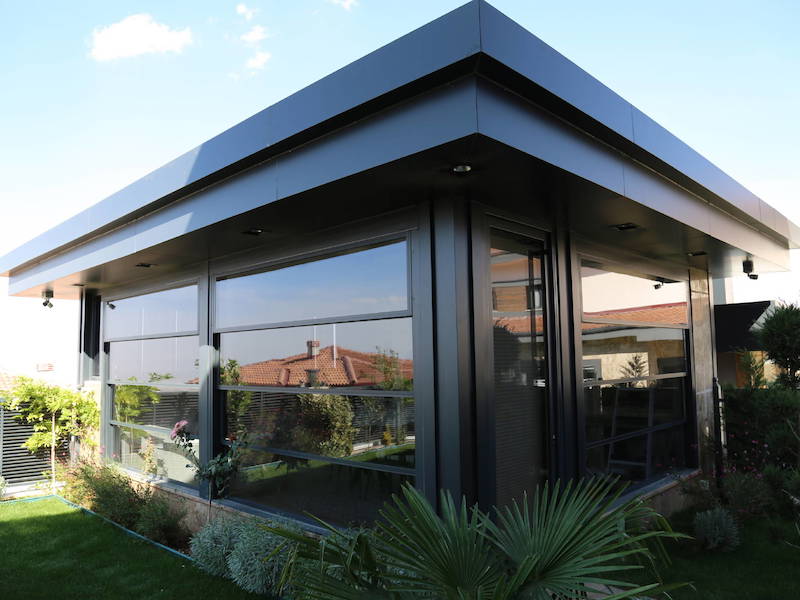

Verona guillotine system that especially preferred in cafe and restaurants is also suitable for office and home to provide aesthetic. Easy to use with options both remote kontroller and button and so it is also compatible with smart homes. When the fixed panel is closed, it acts as a handrail and makes your area safer. Since there is no vertical profiles, the system allows to get panoramic views.
Glass options: 4+16+4 glass options (2+2) 2 fixed and 2 movable
System works with custom process 5B chain and requires very low Newton or even it is possible to use it manuel with hand. Also it is easy to clean by hand and so it is suitable to use at home or all kind of living quarters. Thanks to insulation barrier in vertical profiles this also increases the heat insulation using with 4+16+4 glass combination.
*System has manuel or with motor production options.
| Feature | Detail |
|---|---|
| Type | Engine, Gear and Chain System |
| Materials | Aluminium – Glass – Motor |
| Glass Thickness | 24 mm Tempered or Laminated Double Pane Glasses |
| Profile Colors | Anthracite - Raw - Ral Colors |
| Accessories Colour | Black |
| Maximum Sash Width | 4000 mm (Optimum weight must be calculated.) |
| Maximum System Height | 4000 mm (Optimum weight must be calculated.) |
| Gasket | Bristle Wick and EPDM Gasket |
| Plastic Parts | Custom Polyamide (PA66) made |
