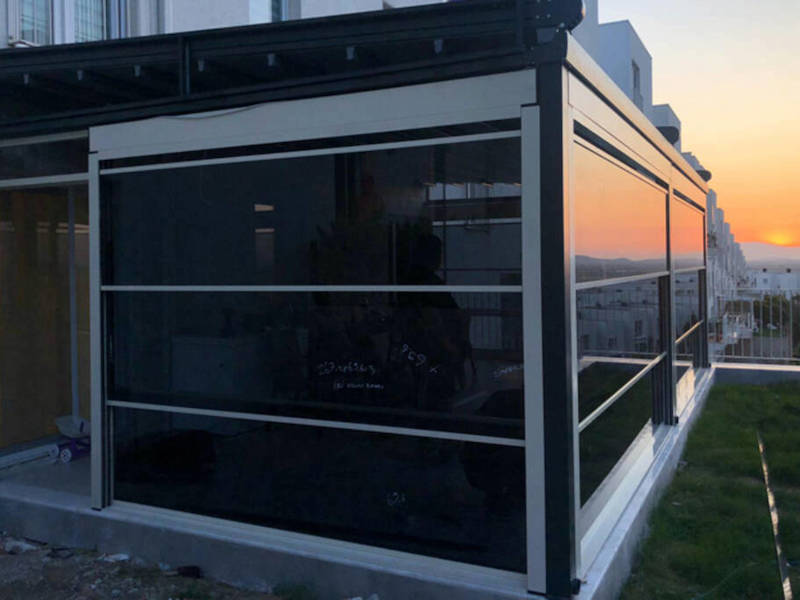

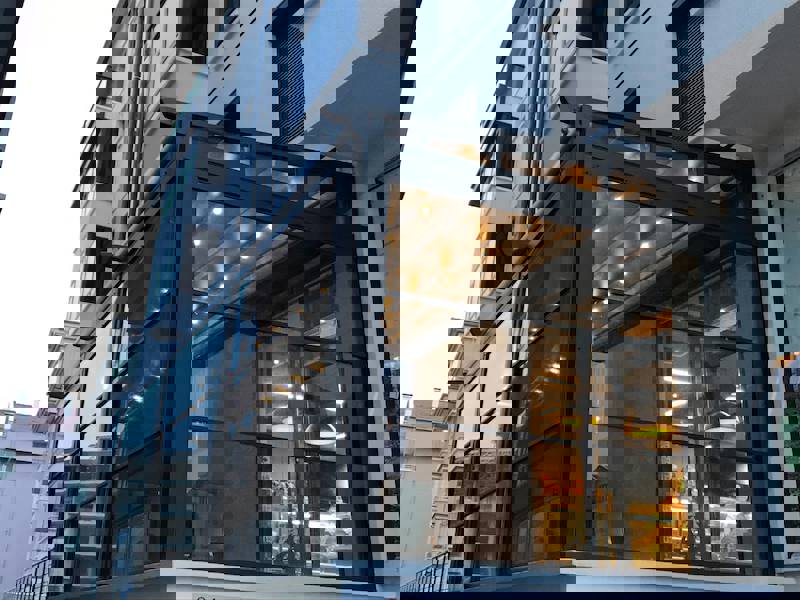

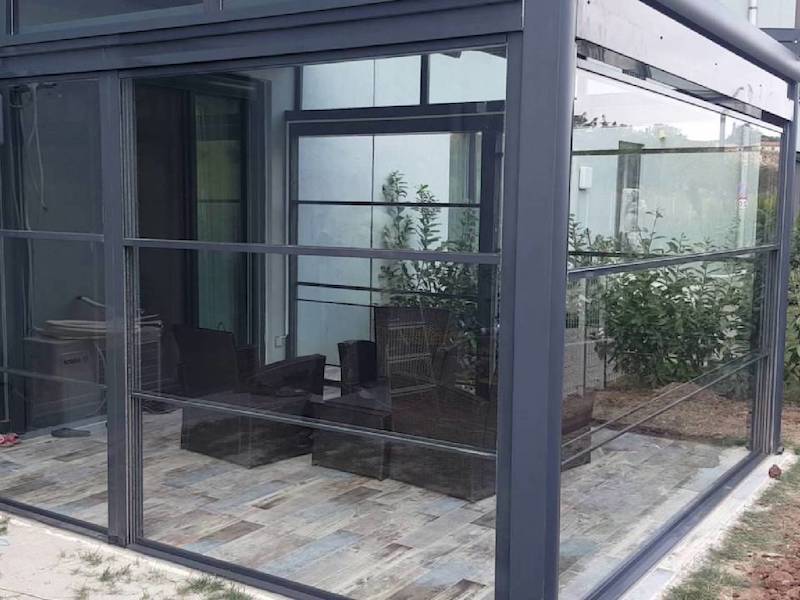

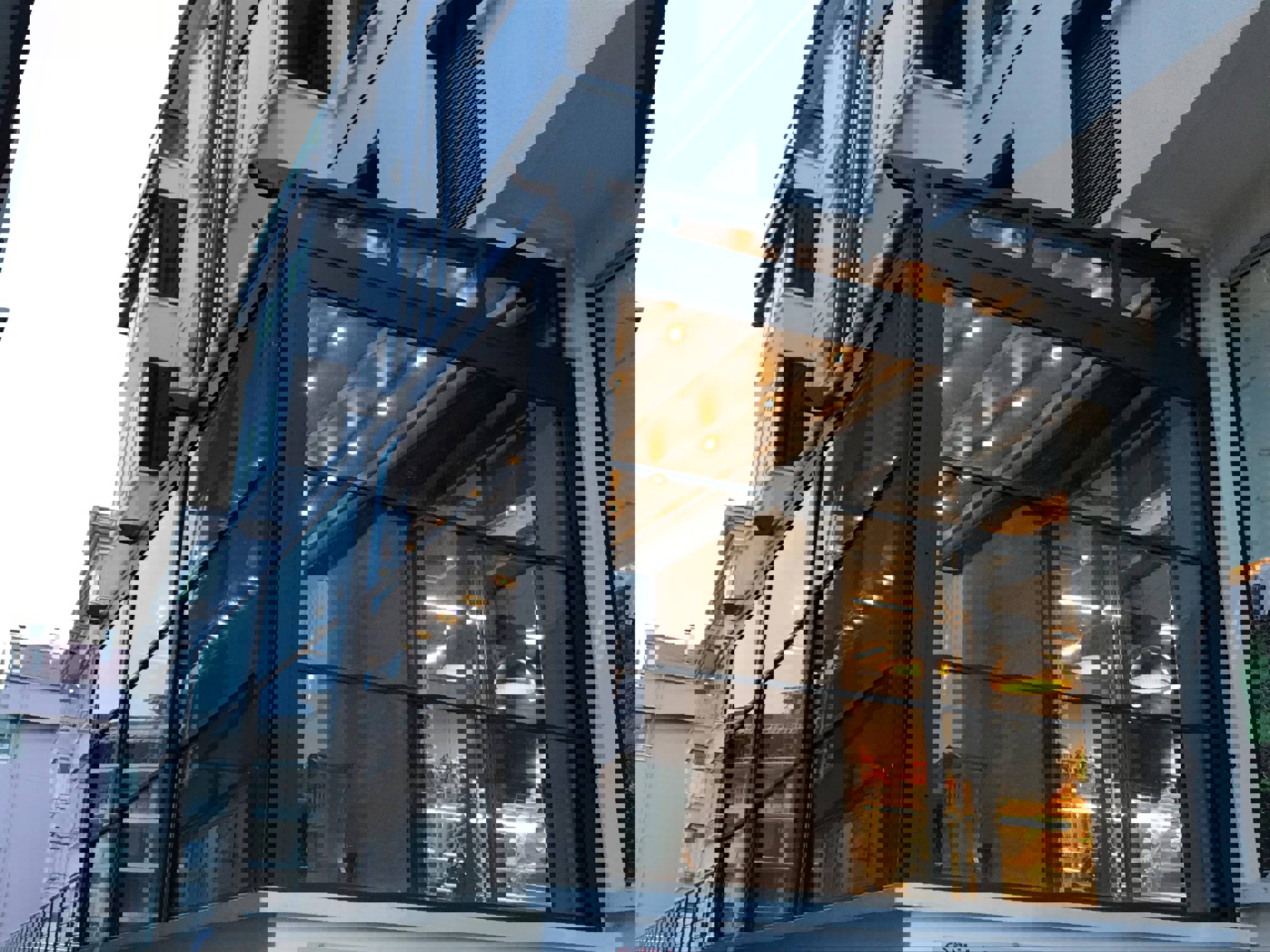

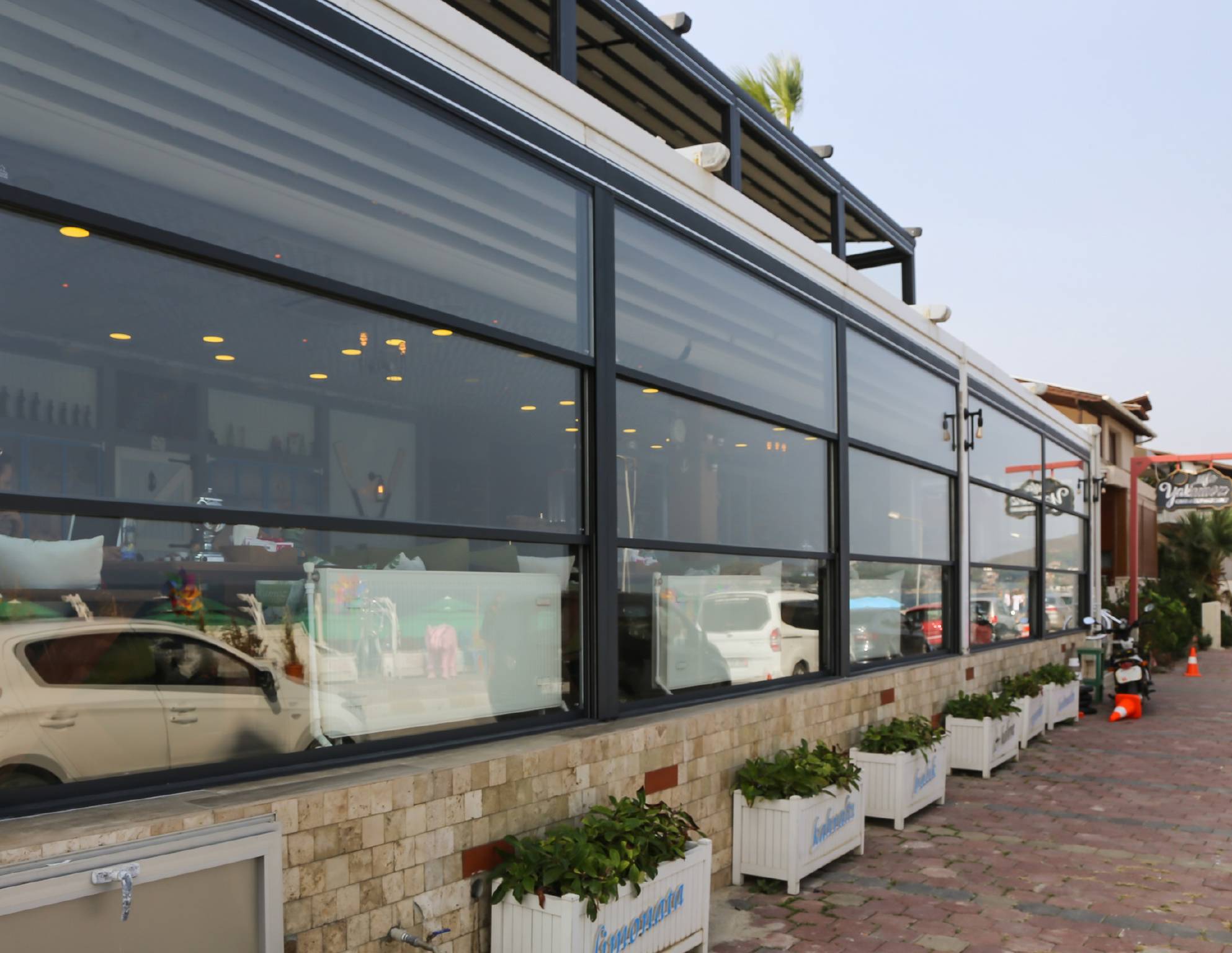

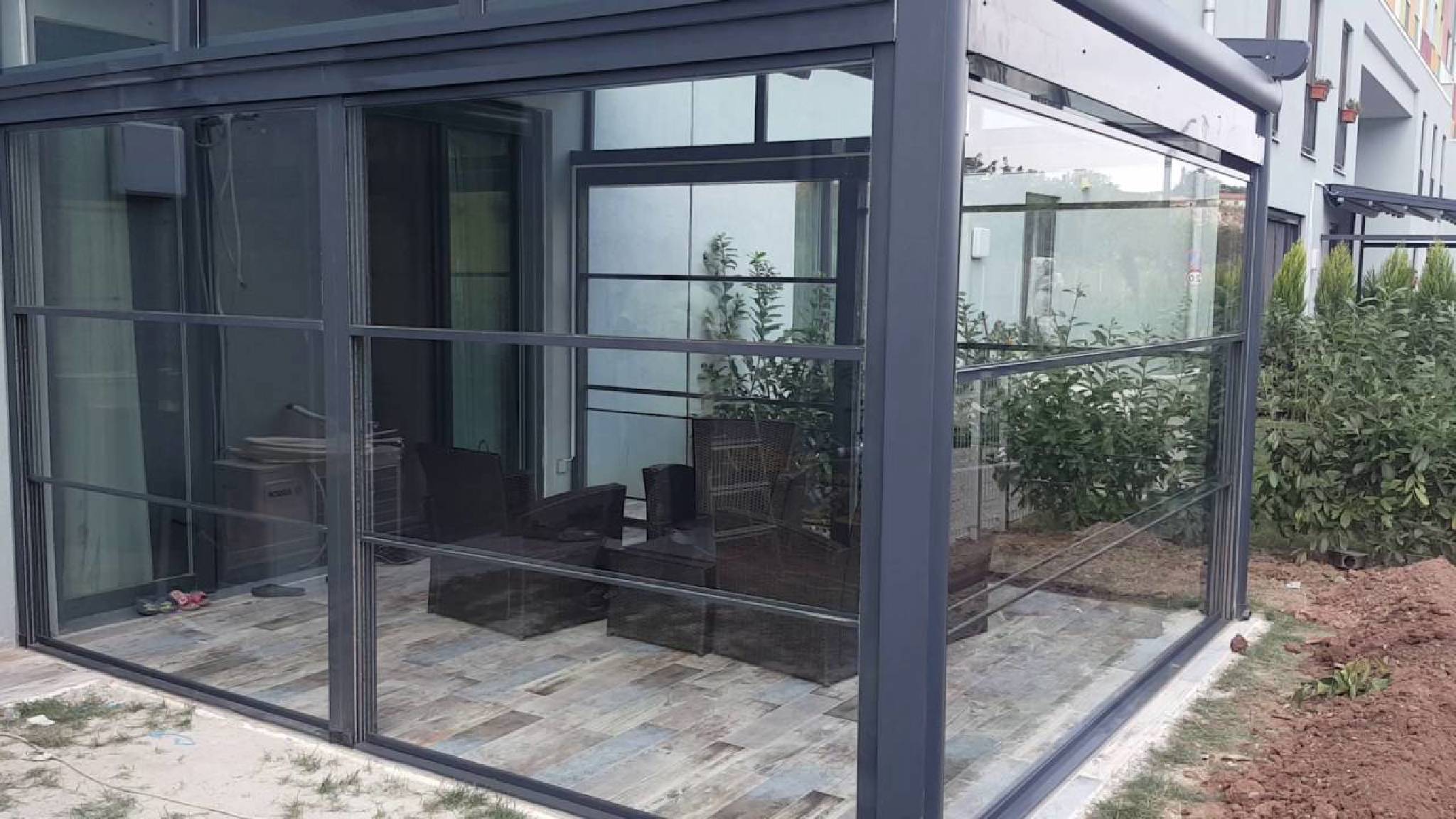

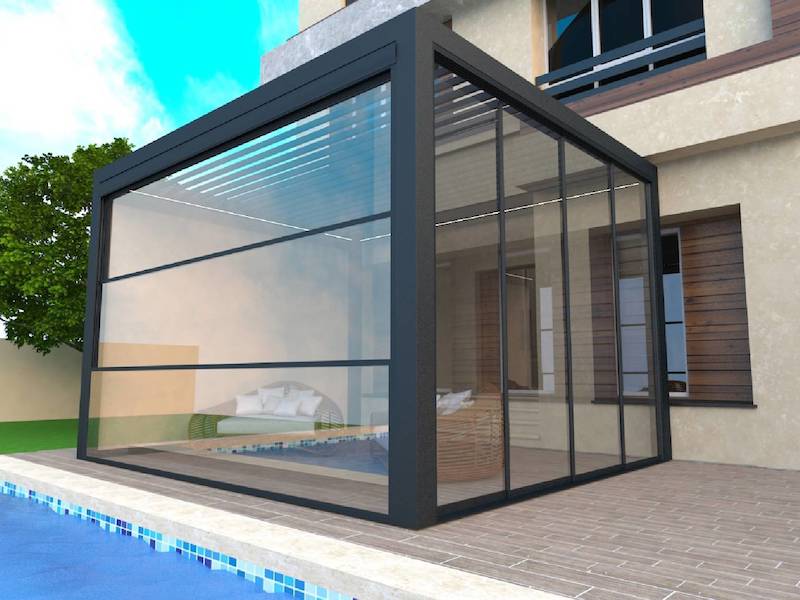

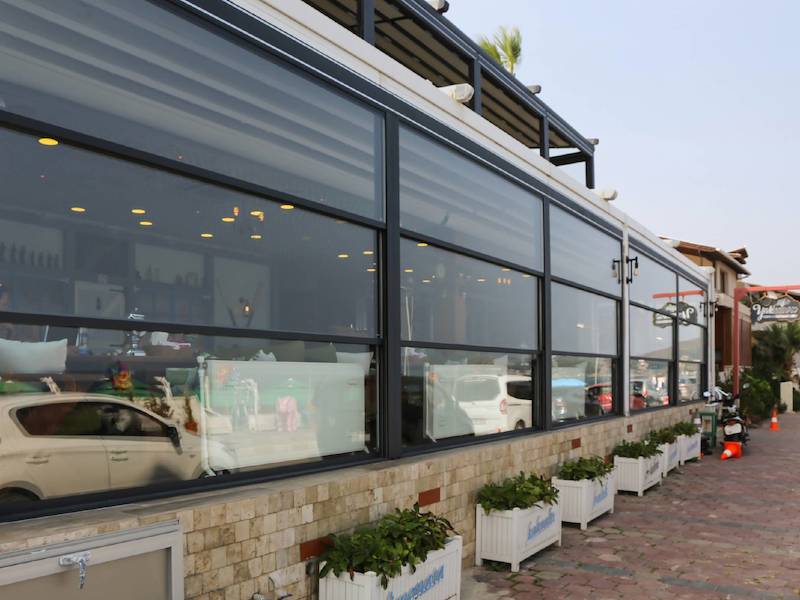

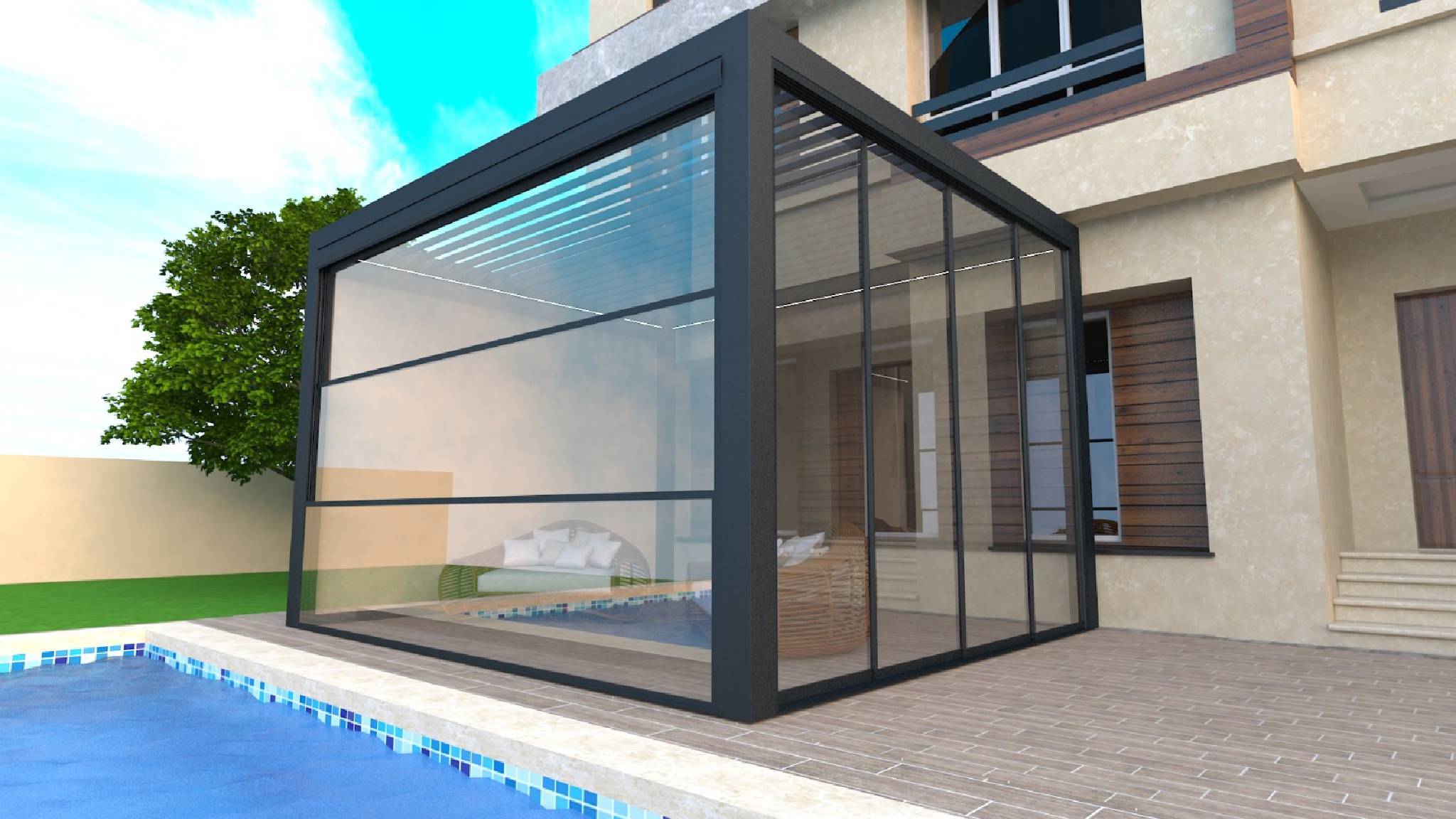

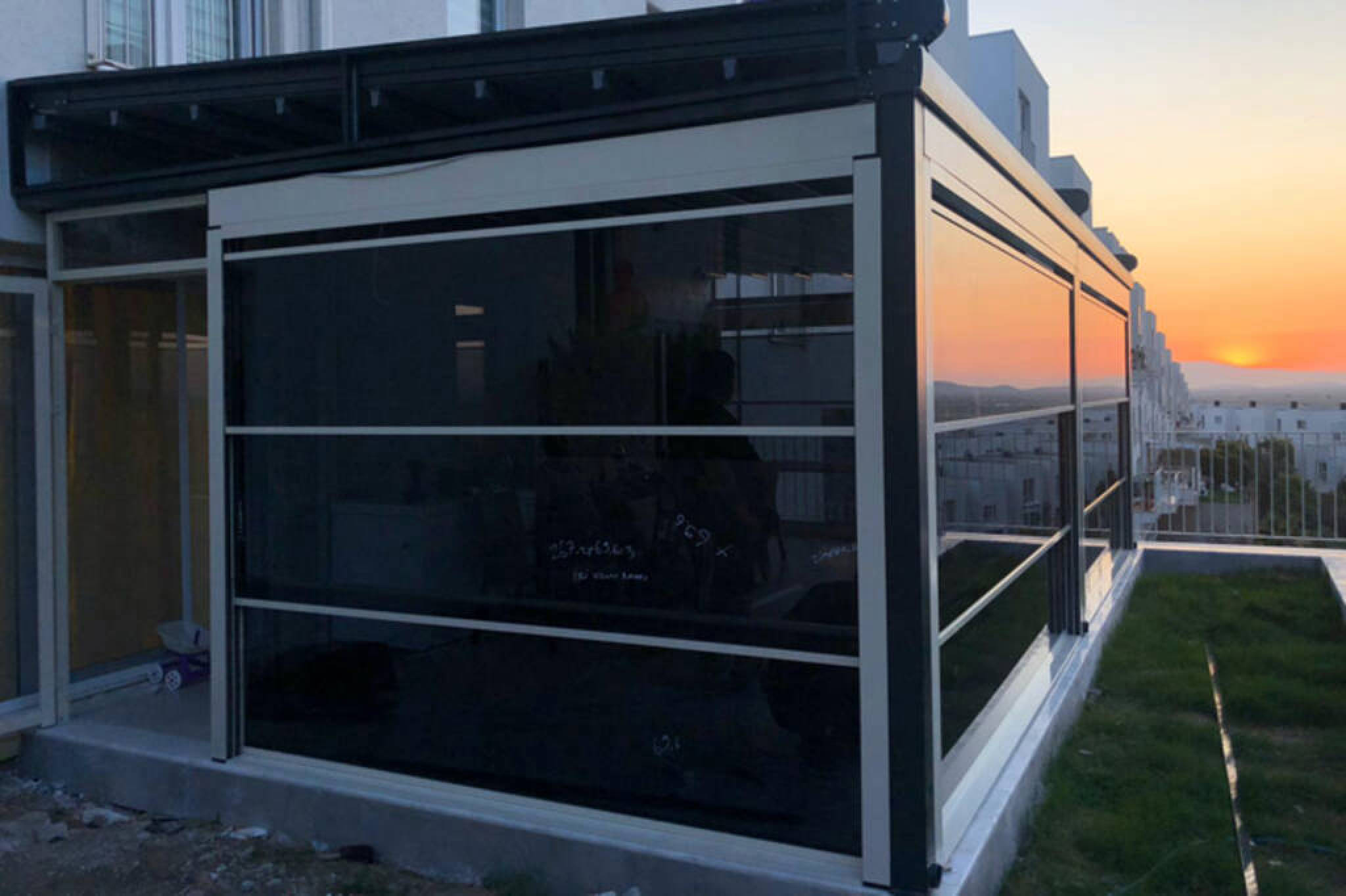

Performa guillotine system which especially preferred in cafe and restaurants is also suitable for office and home to provide aesthetic. Easy to use with options both remote kontroller and button and so it is also compatible with smart homes. When the fixed panel is closed, it acts as a handrail and makes your area safer. Since there is no vertical profiles, the system allows to get panoramic views.
Glass options:
- 8 mm (1+1, 1+2, 1+3) first glass is fixed and others are movable.
- 26 mm double pane glasses (combination 4+18+4) 1+2 first glass is fixed and others are movable.
For sound insulation there is a press barrier has 150 DNS intensity in the top box and this also increases the heat insulation using with 4+18+4 glass combination.
| Feature | Detail |
|---|---|
| Type | Engine, Gear and Chain System |
| Materials | Aluminium – Glass – Motor |
| Glass Thickness | Suitable for 8 mm tempered single pane and 26 mm double pane as well as laminated glasses |
| Profile Colors | Anodized Matt - Anthracite - Press - Ral Colors |
| Accessories Colour | Black |
| Maximum Sash Width | 3600 mm (Optimum weight must be calculated.) |
| Maximum System Height | 4000 mm (Optimum weight must be calculated.) |
| Gasket | Bristle Wick and EPDM Gasket |
| Plastic Parts | Custom Polyamide (PA66) made |
