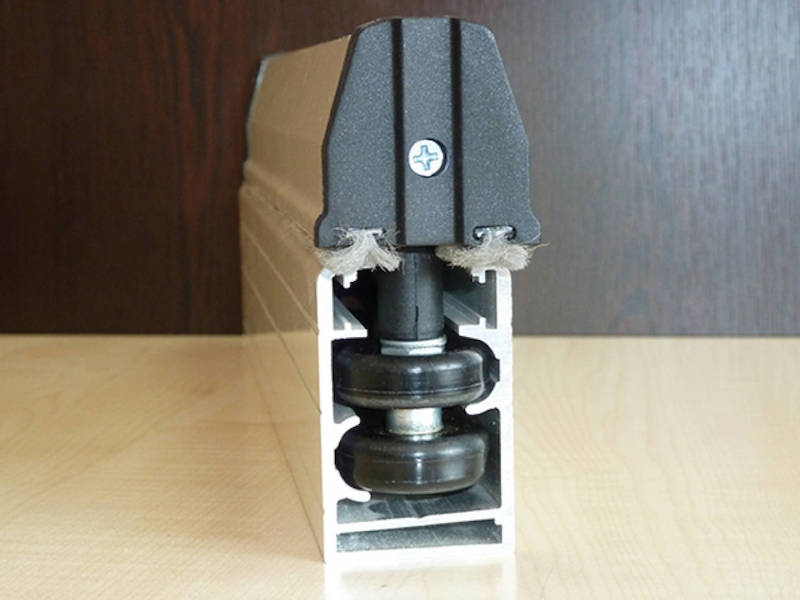

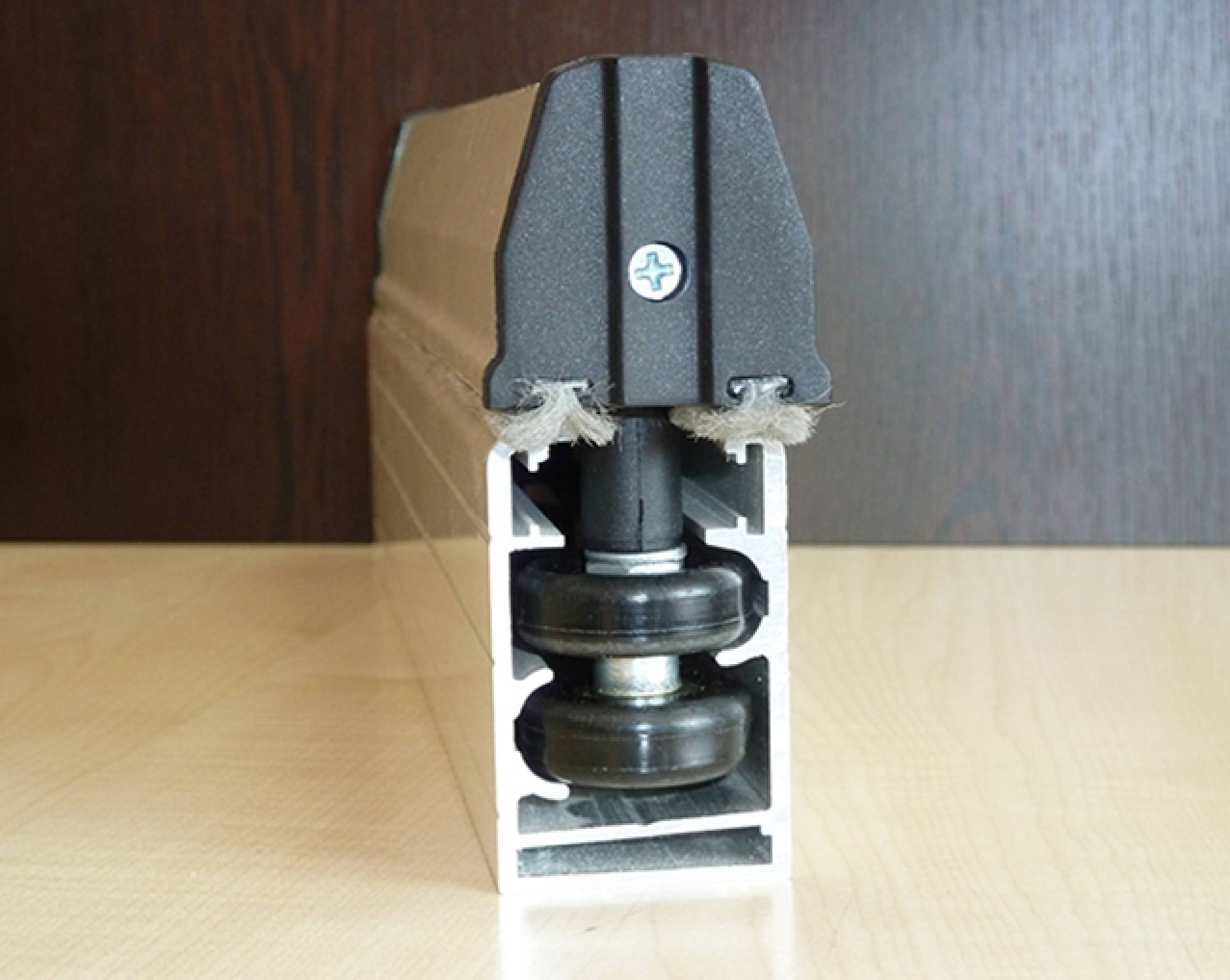

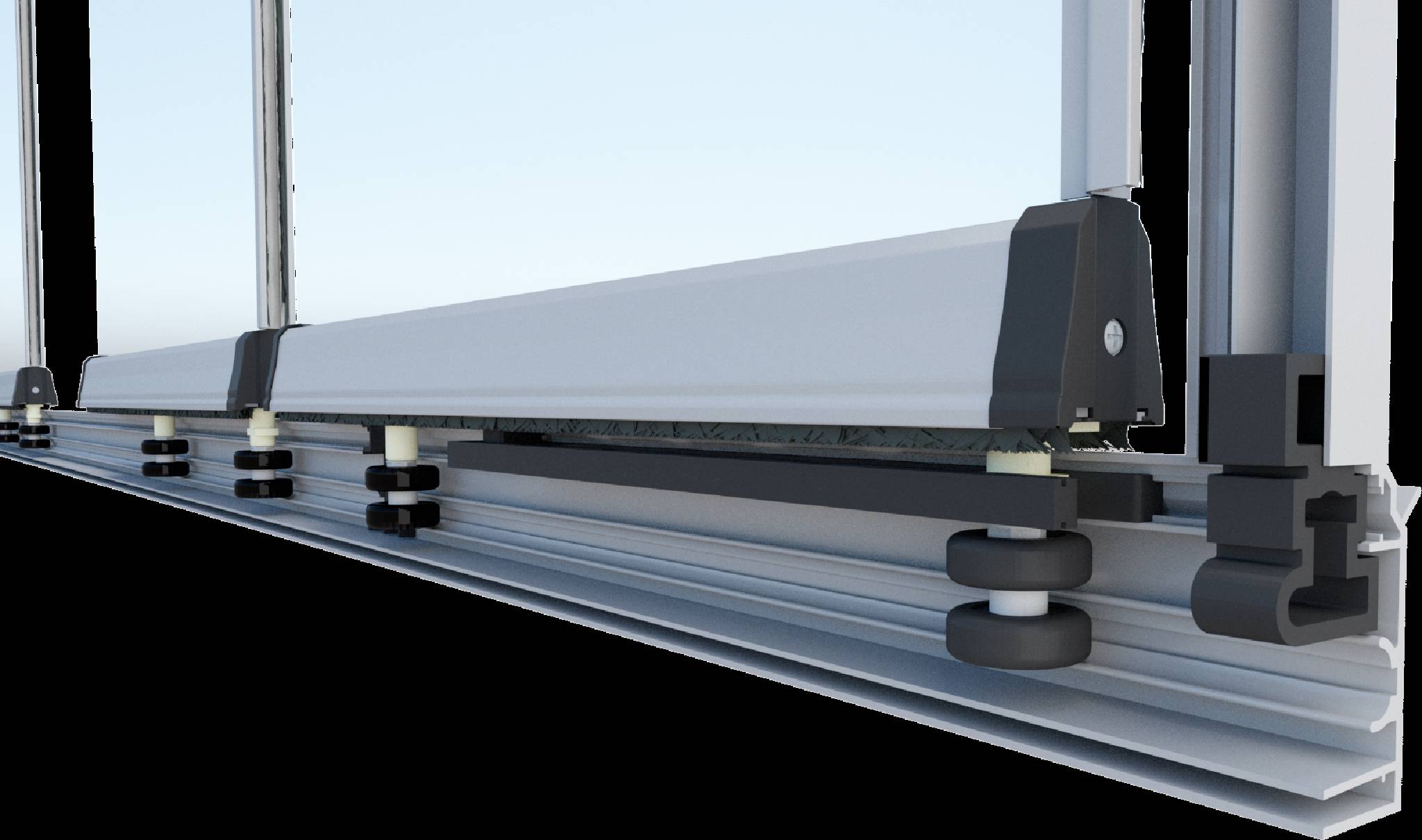

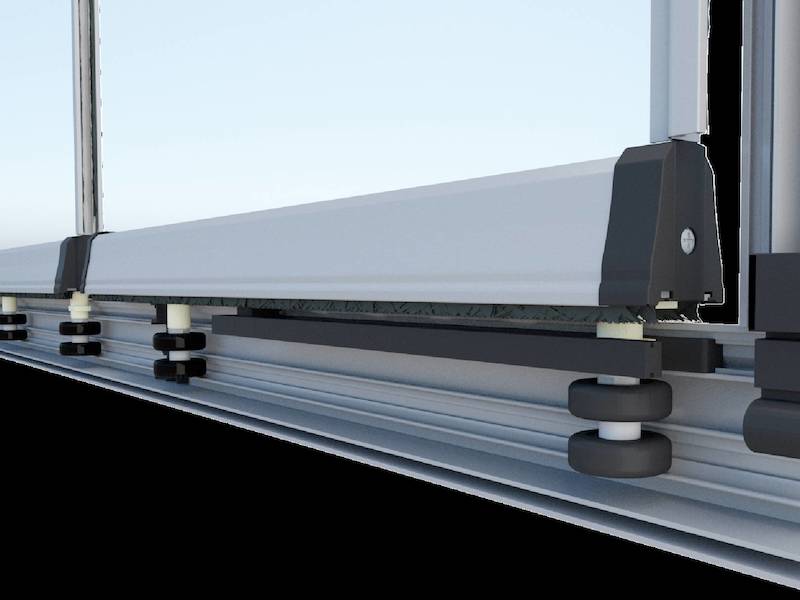

In this system, we use 40 mm bottom and top case width to make it solid, hidden water drainage system to avoid visual pollution, 30 mm bearing wheels to be able to carry more loads, bristle wick and parts which produced by injection molds to heat insulation, hexagonal sash holder to prevent from closing opened windows because of natural factors such as wind. Optionally, Espagnolette system can be assembled in the first window.
| Feature | Detail |
|---|---|
| Type | Folding System |
| Materials | Aluminium – Glass |
| Glass Thickness | 8 mm |
| Profile Colors | Anodized Matt – Anodized Bronze – Wooden – Anthracite - Press - Ral Colors |
| Accessories Colour | Gray - Black |
| Maximum Sash Width | 500 mm – 1200 mm or 650 mm (Optimum weight must be calculated.) |
| Maximum Sash Height | 700 mm – 2700 mm or 2500 mm (Optimum weight must be calculated.) |
| Gasket | Bristle Wick and EPDM PVC Gasket |
| Plastic Parts | Custom Polyamide (PA66) made |
